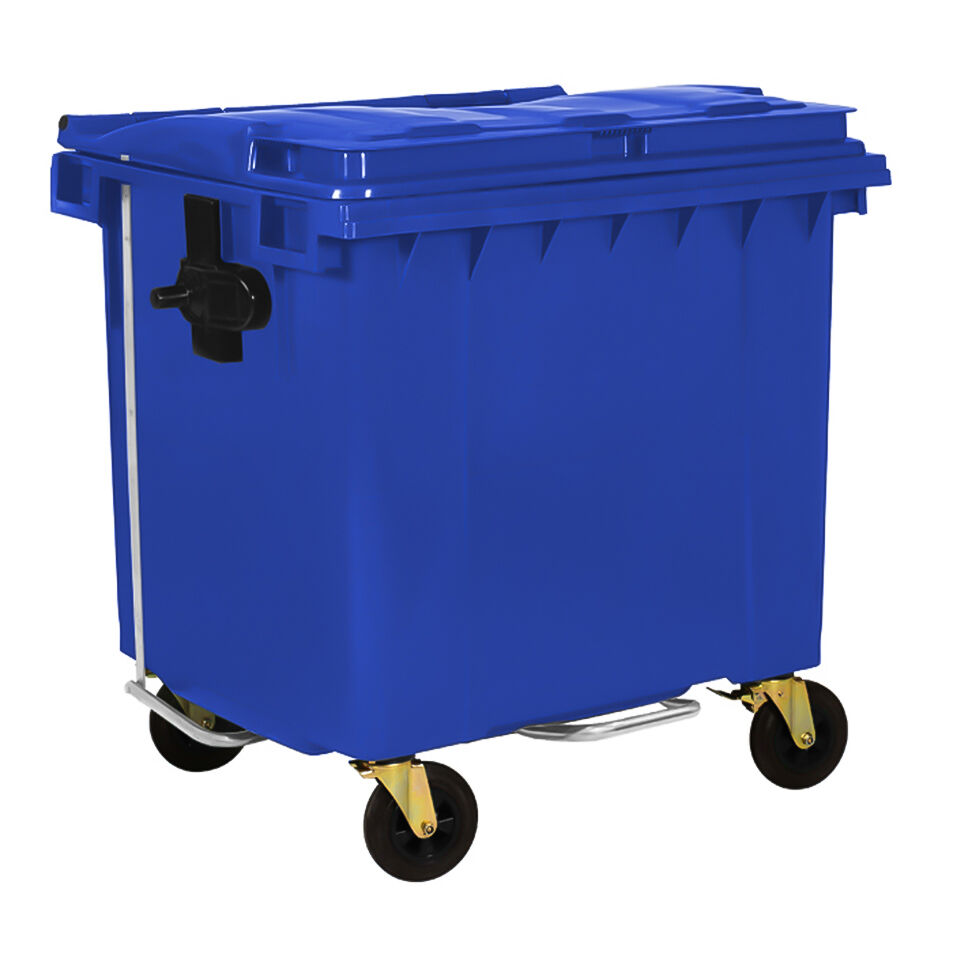

1100L BLUE PLASTIC WASTE CONTAINER WITH FOOT PEDAL

Other combinations

Ref. 011.00084
Description
• Manufactured from HDPE using the injection moulding method and 100% virgin raw material
• Compatible with EN 840 2-5-6
• Smooth surface for easy cleaning
• Resistant to UV, cold, heat, and chemicals
• Lid opener 270 degree and fixed through two metal pins
• Print area on body and lid
• Ø 200 mm wheels, 2 with breaks
• Designed to accommodate data carriers
• Compatible with standard lifting equipment
Technical Features
CAPACITY: 1100L
LENGTH: 1380mm
WIDTH: 1060mm
HEIGHT: 1280mm
WEIGHT: 48,80kg
MAXIMUM PAYLOAD : 440kg
Lid Standard Colors
Body Standard Colors
Request a Quote



TECHNICAL FEATURES



Length Lid Length Base Length Height Without Lid Width Width With Lid Width Between Axes Width Between Wheels
1100l 1380mm 1193mm 1070mm 1280mm 1180mm 1026mm 1060mm 890mm 750mm 200mm 48,80kg 440kg



EXTRA OPTIONS



Hot stamping

Screen printing

Galvanized metal handel

Evacution hole



LOGISTIC DATA

40'DC 40'HC
45 un 90 un 105 un 156 un

TECHNICAL DRAWING

100l WASTE PLASTIC CONTAINER

100l WASTE PLASTIC CONTAINER


ADVANTAGES



Norm EN 840-2-5-6

Print area on body and lid

Designed to accommodate data carriers

Compatible with standard lifting equipment



RECOMMENDATIONS FOR USE



Do not exceed recommended dynamic load
